aardio绘图演示

wwsheng

发布:2017-08-02 17:35:21 分类:心得经验

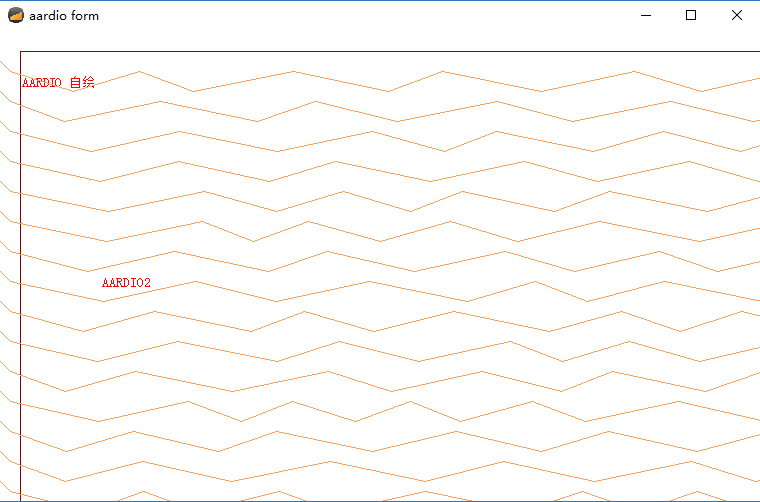

用aardio绘图进行GDI+的绘图还很简单,效率也不错.

import win.ui;

/*DSG{{*/

var winform = win.form(text="aardio form";right=759;bottom=469;parent=...)

winform.add()

/*}}*/



import ..gdip;

class Cdraw{

    ctor( /*输入构造函数所需要的参数*/ ){



    };

    type=me;

    /*对象的所有成员必须用分号分隔*/



    leftPad = 50;

    rightPad = 45;

    topPad = 20;//顶上的边距

    bottomPad = 20;



    setGraphics = function(graphics){

        this.tmpBuffer = graphics

    }

    setRect = function(rc){

        this.clientRect = rc;

    }

    drawText = function(str,x,y,size=13,colour=0xFFFF0000,w=80,h=50,font="宋体"){

        if(!str || !#str){

            return ;

        }

        var graphics = this.tmpBuffer



        var brush = ..gdip.solidBrush(colour);



        //创建FontFamily

        var family = ..gdip.family(font);

        //创建stringFormat

        var strformat = ..gdip.stringformat ( );



        //设置样式

        strformat.align = 0/*_GdipStringAlignmentNear*/;



        //创建Font

        var curFont = family.createFont( size,0/*_GdipFontStyleRegular*/, 2/*_GdipUnitPixel*/)



        //设置文字抗据齿

        //graphics.smoothingMode = 4/*_GdipSmoothingModeAntiAlias*/ ;



        //消除走样，且边作平滑处理

        //graphics.textRenderingHint = 3/*_GdipTextRenderingHintAntiAliasGridFit*/;



        //设置文字区域

        rclayout = ..gdip.RECTF();

        rclayout.x = x

        rclayout.y = y - 5

        rclayout.width = w //在这里指的是宽度

        rclayout.height = h //在这里指的是高度



        graphics.drawString(str,curFont, rclayout, strformat,brush);



        //删除所有GDI+对象

        brush.delete()

        curFont.delete()

        strformat.delete();

        family.delete();

    }

    drawLine = function(left,top){

        pen = ..gdip.pen(0xFFF4A460,0.5,2/*_GdipUnitPixel*/)

        var gBuffer = this.tmpBuffer;

        startPoint  = {};

        startPoint.x = left;

        startPoint.y = top;



        endPoint = {};

        endPoint.x = left+10;

        endPoint.y = top + 10;



        xx = 1

        for(i=1;50;1){

            gBuffer.drawLine(pen,startPoint.x,startPoint.y,endPoint.x,endPoint.y);

            startPoint = ..table.clone(endPoint);

            endPoint.x +=  ..math.random(50, 100)

            endPoint.y  += xx * 20

            xx *= -1



        }

    }



    draw = function(){

        var gBuffer = this.tmpBuffer;

        var rc = this.clientRect;

        var left,top,right,bottom = rc.left,rc.top,rc.right,rc.bottom;

        var width = right - left;

        var height = bottom - top;



        var pen = ..gdip.pen(0xFF8B0000,1);

        gBuffer.drawRectangle(pen,rc.left+20,rc.top+20,width,height);

        pen.delete();





        //drawText = function(gBuffer,string,x,y,size=13,colour=0xFF4682B4,w=50,h=50,font="宋体")

        this.drawText("AARDIO 自绘",rc.left+20,rc.top+50,,,300)



        this.drawText("AARDIO2",rc.left+100,rc.top+250,,,600)

        ..math.randomize()

        for(i=1;20;1){



            this.drawLine(left,top+i*30)



        }

    }

}



drawer = Cdraw();



winform.wndproc = function(hwnd,message,wParam,lParam){

    select( message ) {

        case 0x205/*_WM_RBUTTONUP*/{

            //鼠标右键弹起,下面获取坐标

            var x,y = win.getMessagePos(lParam);



        }case 0xF/*_WM_PAINT*/{



        ..gdi.paintBuffer( hwnd,

                    function( hdc,hMemDc,hMemBitmap,width,height,rcPaint,fErase,paintStruct ){



                        var gBuffer = ..gdip.graphics(hMemDc);



                        gBuffer.clear(0xFFFFFFFF);

                        drawer.setGraphics(gBuffer);



                        drawer.setRect(rcPaint);

                        drawer.draw();



                        gBuffer.delete();

                        ::BitBlt(hdc, 0, 0, width, height, hMemDc, 0, 0, 0xCC0020/*_SRCCOPY*/);

                    }

                );

        }

    }

    //无返回值则继续调用默认回调函数

}

winform.enableDpiScaling();

winform.show();

win.loopMessage();

return winform;

• 泽越止

  Time:2017-08-02 17:51:33
  使用plus控件简易版。







  import win.ui;

  import gdip.pen;

  /*DSG{{*/

  var winform = win.form(text="aardio form";right=759;bottom=469)

  winform.add(

  plus={cls="plus";left=111;top=100;right=576;bottom=372;notify=1;z=1}

  )

  /*}}*/







  winform.plus.onDrawContent = function(graphics,rc){

   var pen = gdip.pen(gdi.ARGB(0,0,255,255),1);



      graphics.drawLine(pen,0,0,50,50)

      graphics.drawLine(pen,50,50,150,250)

      graphics.drawLine(pen,150,250,250,0)



      pen.delete();

  }



  winform.show()

  win.loopMessage();





• wwsheng

  Time:2017-08-02 18:00:50
  可以加点颜色.



  colours = {

          AliceBlue = 0xFFF0F8FF; // 艾丽丝蓝

          AntiqueWhite = 0xFFFAEBD7; // 古董白

          Aqua = 0xFF00FFFF; // 水绿

          Aquamarine = 0xFF7FFFD4; // 碧绿

          Azure = 0xFFF0FFFF; // 天蓝

          Beige = 0xFFF5F5DC; // 米色

          Bisque = 0xFFFFE4C4; // 汤黄

          Black = 0xFF000000; // 黑

          BlanchedAlmond = 0xFFFFEBCD; // 布兰奇杏黄

          Blue = 0xFF0000FF; // 蓝

          BlueViolet = 0xFF8A2BE2; // 蓝紫

          Brown = 0xFFA52A2A; // 棕褐

          BurlyWood = 0xFFDEB887; // 实木

          CadetBlue = 0xFF5F9EA0; // 军校蓝

          Chartreuse = 0xFF7FFF00; // 查特酒绿

          Chocolate = 0xFFD2691E; // 巧克力色

          Coral = 0xFFFF7F50; // 珊瑚色

          CornflowerBlue = 0xFF6495ED; // 矢车菊蓝

          Cornsilk = 0xFFFFF8DC; // 玉米黄

          Crimson = 0xFFDC143C; // 深红

          Cyan = 0xFF00FFFF; // 青

          DarkBlue = 0xFF00008B; // 暗蓝

          DarkCyan = 0xFF008B8B; // 暗青

          DarkGoldenrod = 0xFFB8860B; // 暗一枝黄花

          DarkGray = 0xFFA9A9A9; // 暗灰

          DarkGreen = 0xFF006400; // 暗绿

          DarkKhaki = 0xFFBDB76B; // 暗黄褐

          DarkMagenta = 0xFF8B008B; // 暗品红

          DarkOliveGreen = 0xFF556B2F; // 暗橄榄绿

          DarkOrange = 0xFFFF8C00; // 暗橙色

          DarkOrchid = 0xFF9932CC; // 暗淡紫

          DarkRed = 0xFF8B0000; // 暗红

          DarkSalmon = 0xFFE9967A; // 暗鲜肉色

          DarkSeaGreen = 0xFF8FBC8B; // 暗海绿

          DarkSlateBlue = 0xFF483D8B; // 暗岩蓝

          DarkSlateGray = 0xFF2F4F4F; // 暗岩灰

          DarkTurquoise = 0xFF00CED1; // 暗青绿

          DarkViolet = 0xFF9400D3; // 暗紫

          DeepPink = 0xFFFF1493; // 深粉红

          DeepSkyBlue = 0xFF00BFFF; // 深天蓝

          DimGray = 0xFF696969; // 淡灰

          DodgerBlue = 0xFF1E90FF; // 传单蓝

          Firebrick = 0xFFB22222; // 耐火砖色

          FloralWhite = 0xFFFFFAF0; // 花卉白

          ForestGreen = 0xFF228B22; // 森林绿

          Fuchsia = 0xFFFF00FF; // 灯笼海棠红

          Gainsboro = 0xFFDCDCDC; // 浅灰色

          GhostWhite = 0xFFF8F8FF; // 幽灵白

          Gold = 0xFFFFD700; // 金黄

          Goldenrod = 0xFFDAA520; // 一枝黄花

          Gray = 0xFF808080; // 灰

          Green = 0xFF008000; // 绿

          GreenYellow = 0xFFADFF2F; // 黄绿

          Honeydew = 0xFFF0FFF0; // 蜜色

          HotPink = 0xFFFF69B4; // 热粉红

          IndianRed = 0xFFCD5C5C; // 印度红

          Indigo = 0xFF4B0082; // 靛蓝

          Ivory = 0xFFFFFFF0; // 象牙色

          Khaki = 0xFFF0E68C; // 卡其黄

          Lavender = 0xFFE6E6FA; // 薰衣草紫

          LavenderBlush = 0xFFFFF0F5; // 紫红

          LawnGreen = 0xFF7CFC00; // 草坪绿

          LemonChiffon = 0xFFFFFACD; // 柠檬薄绸

          LightBlue = 0xFFADD8E6; // 亮蓝

          LightCoral = 0xFFF08080; // 亮珊瑚色

          LightCyan = 0xFFE0FFFF; // 亮青

          LightGoldenrodYellow =0xFFFAFAD2; // 亮一枝黄

          LightGray = 0xFFD3D3D3; // 亮灰

          LightGreen = 0xFF90EE90; // 亮绿

          LightPink = 0xFFFFB6C1; // 亮粉红

          LightSalmon = 0xFFFFA07A; // 亮鲜肉色

          LightSeaGreen = 0xFF20B2AA; // 亮海绿

          LightSkyBlue = 0xFF87CEFA; // 亮天蓝

          LightSlateGray = 0xFF778899; // 亮岩灰

          LightSteelBlue = 0xFFB0C4DE; // 亮钢蓝

          LightYellow = 0xFFFFFFE0; // 亮黄

          Lime = 0xFF00FF00; // 浅绿

          LimeGreen = 0xFF32CD32; // 浅绿

          Linen = 0xFFFAF0E6; // 亚麻色

          Magenta = 0xFFFF00FF; // 品红

          Maroon = 0xFF800000; // 栗色

          MediumAquamarine =0xFF66CDAA; // 中碧绿

          MediumBlue = 0xFF0000CD; // 中蓝

          MediumOrchid = 0xFFBA55D3; // 中淡紫

          MediumPurple = 0xFF9370DB; // 中紫

          MediumSeaGreen = 0xFF3CB371; // 中海绿

          MediumSlateBlue = 0xFF7B68EE; // 中岩蓝

          MediumSpringGreen =0xFF00FA9A; // 中春绿

          MediumTurquoise = 0xFF48D1CC; // 中青绿

          MediumVioletRed = 0xFFC71585; // 中紫红

          MidnightBlue = 0xFF191970; // 午夜蓝

          MintCream = 0xFFF5FFFA; // 薄荷乳

          MistyRose = 0xFFFFE4E1; // 雾玫瑰红

          Moccasin = 0xFFFFE4B5; // 鹿皮色

          NavajoWhite = 0xFFFFDEAD; // 纳瓦霍白

          Navy = 0xFF000080; // 海军蓝

          OldLace = 0xFFFDF5E6; // 旧鞋带

          Olive = 0xFF808000; // 橄榄

          OliveDra = 0xFF6B8E23; // 干橄榄

          Orange = 0xFFFFA500; // 橙

          OrangeRed = 0xFFFF4500; // 橙红

          Orchid = 0xFFDA70D6; // 兰花紫

          PaleGoldenrod = 0xFFEEE8AA; // 白黄

          PaleGreen = 0xFF98FB98; // 白绿

          PaleTurquoise = 0xFFAFEEEE; // 白青绿

          PaleVioletRed = 0xFFDB7093; // 白紫红

          PapayaWhip = 0xFFFFEFD5; // 番木瓜鞭色

          PeachPuff = 0xFFFFDAB9; // 桃粉

          Peru = 0xFFCD853F; // 秘鲁色

          Pink = 0xFFFFC0CB; // 粉红

          Plum = 0xFFDDA0DD; // 梅红

          PowderBlue = 0xFFB0E0E6; // 粉蓝

          Purple = 0xFF800080; // 紫

          Red = 0xFFFF0000; // 红

          RosyBrown = 0xFFBC8F8F; // 玫瑰褐

          RoyalBlue = 0xFF4169E1; // 皇家蓝

          SaddleBrown = 0xFF8B4513; // 鞍褐

          Salmon = 0xFFFA8072; // 鲜肉色

          SandyBrown = 0xFFF4A460; // 沙褐

          SeaGreen = 0xFF2E8B57; // 海绿

          SeaShell = 0xFFFFF5EE; // 海贝色

          Sienna  = 0xFFA0522D; // 赭色

          Silver = 0xFFC0C0C0; // 银白

          SkyBlue = 0xFF87CEEB; // 天蓝

          SlateBlue = 0xFF6A5ACD; // 岩蓝

          SlateGray = 0xFF708090; // 岩灰

          Snow = 0xFFFFFAFA; // 雪白

          SpringGreen = 0xFF00FF7F; // 春绿

          SteelBlue = 0xFF4682B4; // 钢蓝

          Tan = 0xFFD2B48C; // 茶色

          Teal = 0xFF008080; // 水鸭青

          Thistle = 0xFFD8BFD8; // 蓟色

          Tomato = 0xFFFF6347; // 番茄红

          Transparent = 0x00FFFFFF; // 透明

          Turquoise = 0xFF40E0D0; // 宝石绿

          Violet = 0xFFEE82EE; // 紫罗兰

          Wheat = 0xFFF5DEB3; // 小麦色

          White = 0xFFFFFFFF; // 白

          WhiteSmoke = 0xFFF5F5F5; // 烟白

          Yellow = 0xFFFFFF00; // 黄

          YellowGreen = 0xFF9ACD32 // 黄绿

      }





• Admin

  Time:2017-08-02 22:13:21
  非快照方式取出plus上绘图的缓存数据并保存为图片:

  import win.ui;

  import gdip.pen;

  /*DSG{{*/

  var winform = win.form(text="aardio form";right=759;bottom=469)

  winform.add(

  plus={cls="plus";left=111;top=100;right=576;bottom=372;notify=1;z=1}

  )

  /*}}*/





  winform.plus.onDrawContent = function(graphics,rc){

   var pen = gdip.pen(gdi.ARGB(0,0,255,255),1);



      graphics.drawLine(pen,0,0,50,50)

      graphics.drawLine(pen,50,50,150,250)

      graphics.drawLine(pen,150,250,250,0)



      pen.delete();

  }





  winform.show()//先显示窗口再保存图片



  //创建一个指定宽高的画板

  var bmp =gdip.bitmap(winform.plus.width,winform.plus.height)

  bmp.graphics.drawCachedBitmap( winform.plus.cacheBitmap)

  bmp.save("c:\test.png")





  win.loopMessage();

  注意先显示窗口再绘图保存.
